SVRE-D
Mountable in a 3.5-inch ／ 5.25-inch Open Drive Bay
Use newly developed 7th generation 6.0Gbps SATA controller
Realize superb high performance together with high speed SSD
Complete hardware mirroring
Supply without drives
5.25-inch open drive bay is suppoerted with front access
● Customer can select any drives(HDD/SSD) as they like ＊1
● Hotswappable - Long time continuous operation
● Comply with 3.5-inch HDD Form Factor (1-inch Height)
● RoHS compliant
Product Spec
| Model | 3.5-inch HDD Bay Type 5.25-inch Open HDD Bay Type |
SVRE-D000SA SVRE-D000SA-B |
SVRE-D032SA1 SVRE-D032SA1-B |
||
|---|---|---|---|---|---|
| RAID Level | 1 (Mirroring) | ||||
| Storage Capacity | Depends on the HDDs connected | 320GB | |||
| Host Interface | Serial-ATA | ||||
| Drive Interface | Serial-ATA | ||||
| Max Transfer Rate | 6.0Gbps or 3.0Gbps ＊2 | ||||
| Voltage | +5VDC（+4.85V～+5.25V） | ||||
| Current | 0.8A(Typ.) without HDDs | 1.4A(typ) | |||
| Dimensions |
W101.6×D144.5×H25.4 mm W146.0×D144.5×H43.0 mm |
W101.6xD147.0xH25.4 mm W146.0xD147.0xH43.0 mm |
|||
| Weight |
Approximately 270g (Without HDDs) Approximately 470g (Without HDDs) |
Approximately 490g Approximately 695g |
|||
| Environment | Tenperature | Operation | +5～+45℃ ＊3 | ||
| Non-Operation | -40～+65℃ | ||||
| Humidity | Operation | 8～90%RH (No Condensation) | |||
| Non-Operation | 5～95%RH (No Condensation) | ||||
＊1 Maximum HDD height to mount is 9.5mm
＊2 Select by DIP Switch
＊3 The host system should be well ventilated so that a surface temperature of 60 C or less is maintained in the center of the hard disk top sur face.

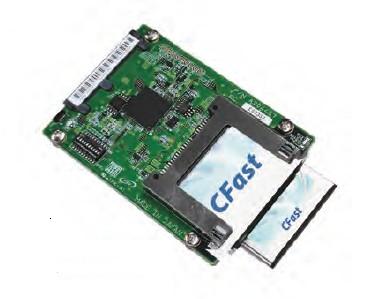

SVRE-D (Cfast)
2,5"HDD Equivalent Size ／CFast Card Mountable Mirror Drive
The latest 7th generation 6.0Gbps SATA Controller

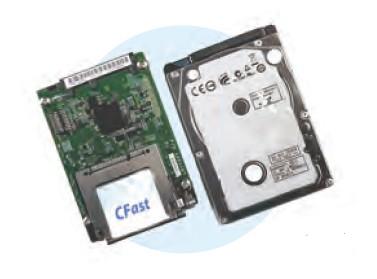

Very compact mirror drive equivalent size of 2.5”HDD
Removable CFast Card to be mounted
Suitable for the Panel Computers and Fanless Computers
● OS independent Complete Hardware Mirroring
● Sophisticated Error Handling
● Support TRIM commands
● Hotswappable
● Ease of CF Card IN/Out by Push Type Socket
● Capable to get SMART Information
● Status Monitoring Software available
●Signals to external LED alert
Product Spec
| Model | 新製品SVRE-D000CF | ||
|---|---|---|---|
| RAID Level | 1（Mirroring） | ||
| Storage Capacity | Depends upon Cfast Card to mount | ||
| Host Interface | Serial-ATA | ||
| Maximum Transfer Rate | 3.0Gbps or 6.0Gbps *1 | ||
| Cards to mount | 2 | ||
| Voltage | + 4.85V ～ +5.25V | ||
| Current | 0.8A（typ） *2 | ||
| Dimensions | W67×D96.3×H17.9 mm ／ W67×D100×H17.9 *2 | ||
| Weight | 約37g | ||
| Environment | Temperatue | Operation | Surface Temp of the IC in the center of the Card 0～+80℃ *3 |
| Non-Operation | -40～+60℃ | ||
| Humidity | Operation | 8～90%RH（No Condensation） | |
| Non-Operation | 5～95%RH（No Condensation） | ||
＊1 Fixed by the DIP switch
＊2 With CF cards mounted
＊3 Need to consider the CF card environmental requirements.Internal Temperature of Enhanced SMART commands should be Equoal to or Lower than 85℃.
